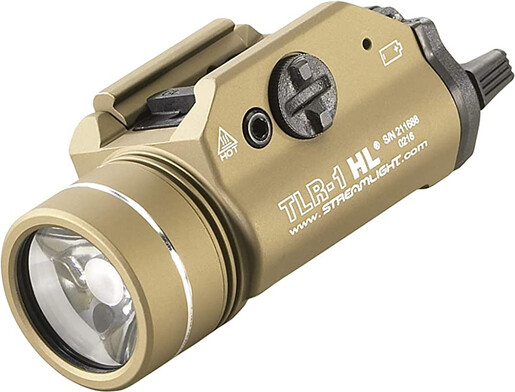

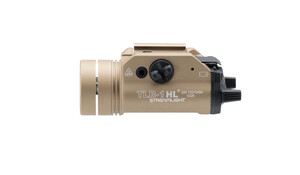

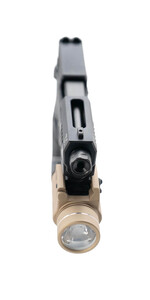

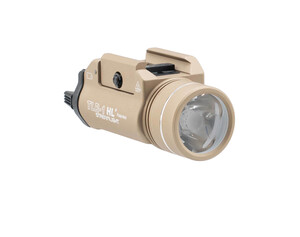

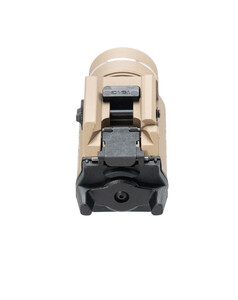

Blinding raw power meets uncompromised duty reliability. The Streamlight TLR-1 HL® (High Lumen) unleashes a blistering 1,000 lumens of wide-beam tactical illumination wrapped in a durable, Flat Dark Earth (FDE) anodized aluminum housing.
Full Product Overview
When the environment plunges into pitch blackness, take absolute control of your structural space. The Streamlight TLR-1 HL® Tactical Weapon Light (SKU: 69266) is the industry-standard benchmark for full-size handgun illumination. Cranking out a massive 1,000 lumens and 20,000 candela of peak beam intensity, this weapon light throws a wide, peripheral flood beam up to 283 meters. This deliberate beam engineering ensures you maximize your peripheral situational awareness, instantly flooding entire rooms, blind corners, and expansive outdoor areas with intense, white light.

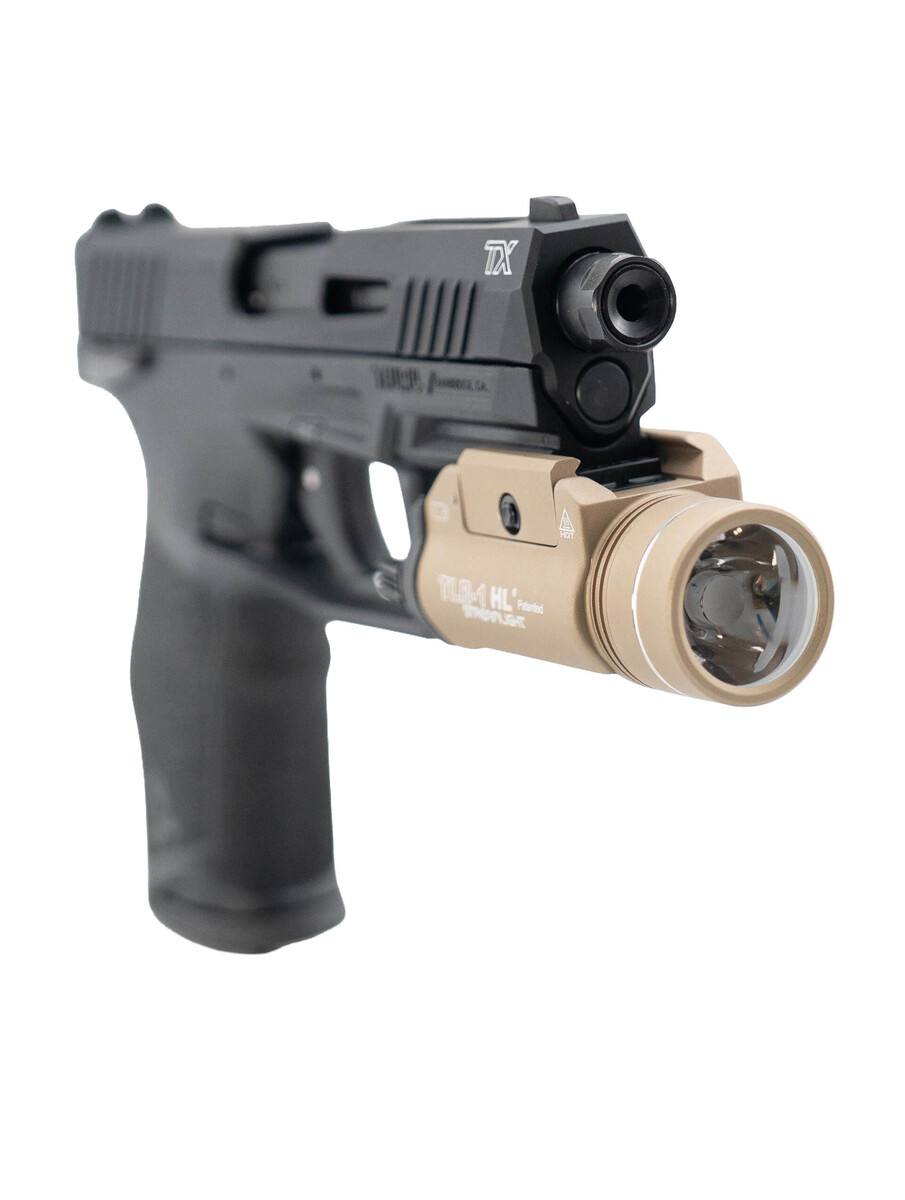

This verified variant features a premium Flat Dark Earth (FDE) hard-anodized finish designed to perfectly match modern tactical handgun frames and earth-toned finishes. Constructed from rugged, machined aircraft-grade aluminum, the TLR-1 HL features a secure, one-handed snap-on and tighten interface that mounts securely to Glock-style, Picatinny, Beretta 92, S&W 99, and SIG SAUER P320 rail configurations using the included specialized locator keys. Outfitted with an ambidextrous momentary/constant-on paddle switch and a user-programmable strobe function, this light is engineered to perform flawlessly under high-stress duty operations.
Technical Specs & Features
-
Illumination Output Performance: Verified 1,000 Lumens of peak brightness.
-
Beam Intensity & Range Matrix: 20,000 Candela yielding a 283-meter maximum beam distance.
-
Chassis Material Finish: CNC-machined 6000-series aircraft aluminum with a durable Flat Dark Earth (FDE) anodized finish.
-
Switch Configuration Architecture: Ambidextrous momentary and constant-on paddle switch.
-
Tactical Features: User-programmable, rapid-double-tap strobe activation mode (can be enabled or disabled).
-
Power Plant System: Powered by 2x CR123A Lithium batteries (included) with a 1.5-hour continuous regulated runtime.
-
Mounting Adaptability: Direct rail grip clamping system with modular locate keys included for Glock-style rails, MIL-STD-1913 (Picatinny) rails, Beretta 92, S&W 99, and SIG SAUER 90two tracks.
-
Environmental Rating Architecture: IPX7 waterproof certified (submersible down to 1 meter for up to 30 minutes); impact-resistant assembly.
Storefront Frequently Asked Questions
Q: Will this full-size weapon light fit properly onto compact or sub-compact handguns? A: The TLR-1 HL is optimized for standard full-size and compact pistols that feature at least a standard multi-slot accessory rail (such as a Glock 17, Glock 19, or Taurus G3). It is physically too long for slimline sub-compact micro pistols like the Taurus GX4, which require specialized micro lights.
Q: How do you lock out or activate the tactical strobe mode? A: The strobe function is highly intuitive. A rapid double-tap on either side of the paddle switch instantly triggers the high-frequency strobe. If you prefer to disable this feature entirely for duty requirements, Streamlight's internal programmable "Ten-Tap" sequencing allows you to turn the strobe mode on or off by rapidly clicking the paddle switch nine times and holding on the tenth.
Q: Do I need tools to swap out dead CR123A batteries? A: No tools are required for a field swap. The TLR-1 HL utilizes a secure, heavy-duty rear latching door. You simply unlatch the spring clip at the top of the rear switch assembly, hinge the back door downward, and swap the dual CR123A cells directly without ever having to unmount the body from your firearm.
